Thunder 255 with DC TIG Package

Original price was: $2,200.00.Current price is: $2,000.00.

-9%
  • Digital IGBT Inverter construction
  • This machine is NOT AC Capable(will NOT weld Aluminum).
  • DC ONLY.
  • Featuring a 4.3-inch HD color LCD screen
  • The PowerSet mode simplifies setup, making it user-friendly even when utilizing the Pulse MIG feature. For those who prefer complete control, the full manual mode allows for detailed adjustments.
  • 8" and 12" diameter wire spool capacity
  • Synergic MIG operation or Standard MIG operation
  • Pulsed TIG operation
  • Spool Gun and Push Pull capable
  • High Frequency Start and Lift Start Modes for TIG
  • 2T/4T torch trigger/latch function offers stepped control welding with TIG and MIG
  • Pre and Post flow adjustable for TIG and MIG operation improves over all weld quality by reducing porosity during start/stops
  • Exclusive 30 channel memory function for quick setup
Download Product Manual

In stock

Thunder 255 with DC TIG Package $2,200.00 Original price was: $2,200.00.$2,000.00Current price is: $2,000.00.

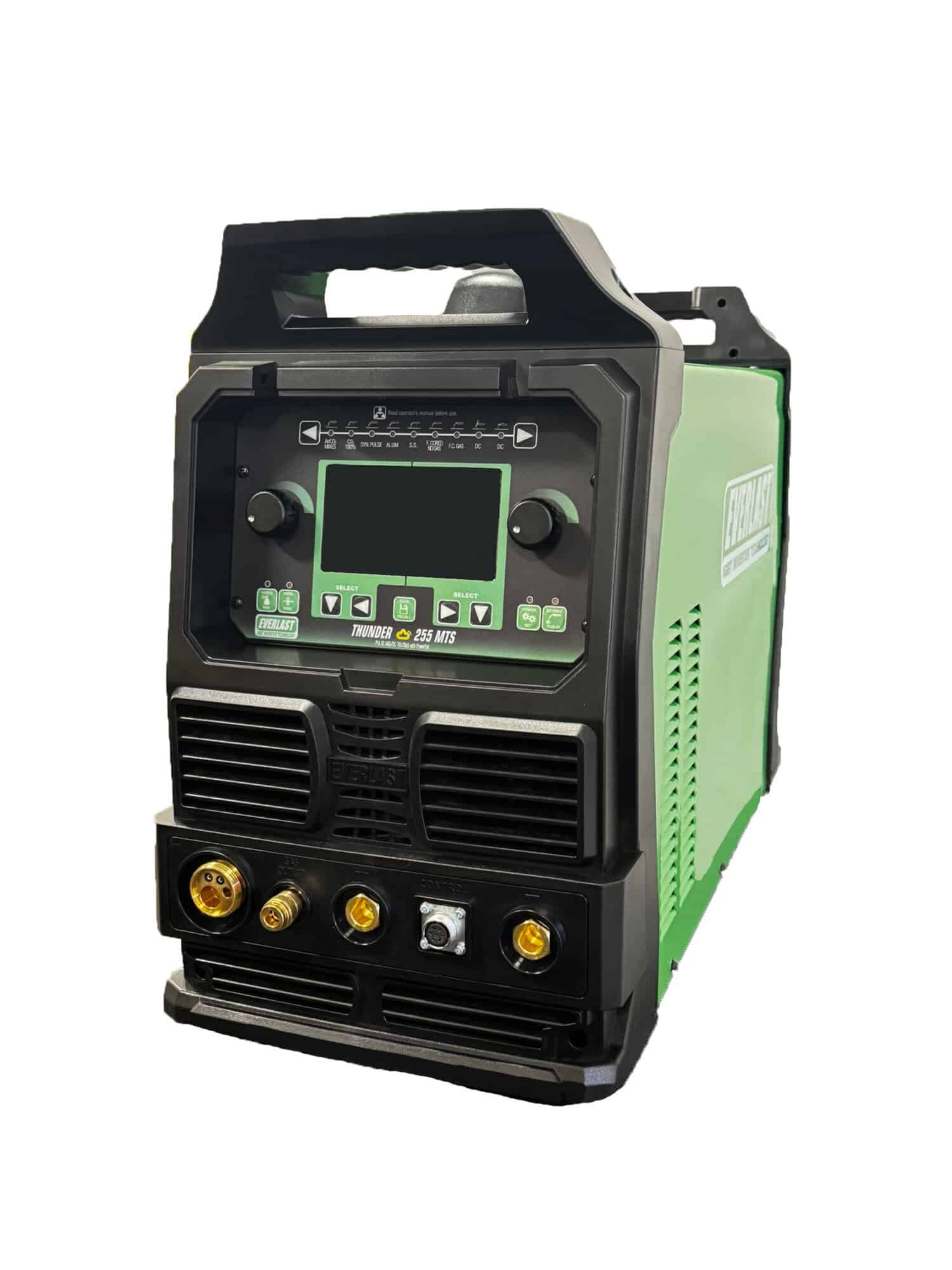

The Thunder 255 is an adaptable powerhouse designed to handle a variety of welding tasks. Whether you’re looking to perform MIG, DC TIG, or Stick welding, this machine is a perfect fit for any welding shop, catering to both fabrication and production needs. Utilizing Everlast’s renowned IGBT inverter technology, this unit is digitally controlled by a microprocessor, ensuring a stable and precise arc across diverse conditions. The Thunder 255 offers an extensive array of functions and features, along with a level of adjustability that sets it apart from other welders in its category.

Equipped with a built-in wire feeder, the Thunder 255 excels as both a conventional MIG welder (Short Arc and Spray) and a Pulsed Spray MIG welder (Single Pulse), offering function selections for each. Furthermore, this model supports FCAW and FCAW-P (Self-Shielded Flux Core and Gas Shielded Flux-Core) wires, enhancing its versatility.

DC TIG ONLY

Features & Benefits
  • DC Pulse TIG and Single pulse MIG capability.
  • High Frequency and Lift Start TIG mode for added versatility.
  • AK36 MIG Gun installed with a Yellow STEEL Liner for wire/tip sizes 1.2/1.6mm (.045/.060") (subject to change)
  • 30 channel memory function
  • Synergic Spool gun operation capability with optional spool gun. Ideal for welding aluminum.
  • Spool Gun Capable for MIG with adjustable wire speed on the Parker Spool Gun (sold seperately)
  • TIG torch and NOVA Foot pedal included for TIG. Regulator included.
  • Adjustable Burn-back control keeps the wire energized after wire has stopped feeding to allow the wire to melt back to a desired length without retrimming wire before restarts.
  • 12" and 8" capable (with adapter for 8" rolls)  Diameter wire spool capacity maintains portability while maintaining productivity.
  • Adjustable MIG Wave arc force control manages slope/ inductance and fine tunes arc characteristics.
  • Adjustable stick Arc Force and New Hot Start controls allows the user to dial in desired Stick welding performance.
  • TIG Up and Down slope allows the user to control the end of the welding cycle.
  • 2T/4T torch trigger/latch function offers stepped control welding with TIG and MIG.
  • Adjustable Pre and Post flow for TIG and MIG operation improves over all weld quality.
  • Water cooler compatible.
  • This machine is NOT AC Capable(will NOT weld Aluminum). DC ONLY.
What's Included

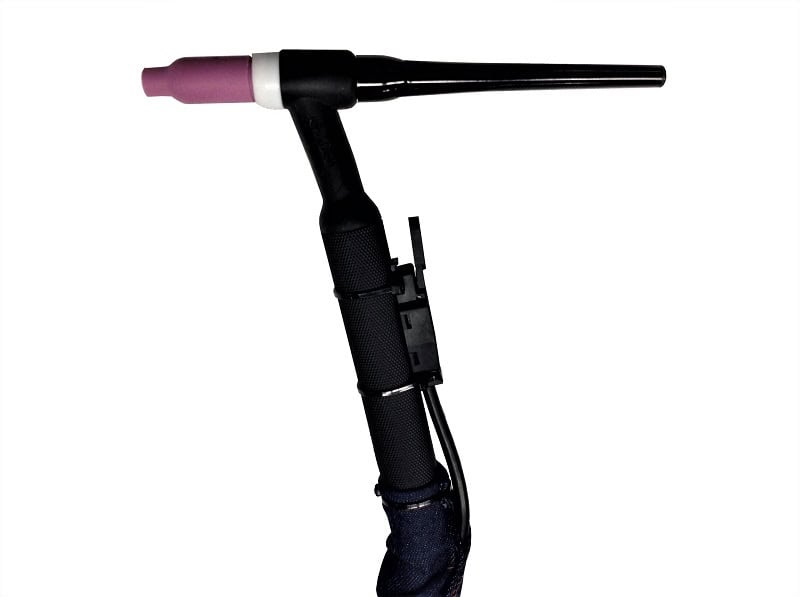

  • Everlast Series #26 with 4m cable (air cooled) Series TIG torch with series 35 DINSE-style connector and torch switch for 2T/4T operation
  • North Series 36 MIG Gun with 3m Cable with Euro style quick connect fitting ** Installed with a Yellow STEEL Liner for wire/tip sizes 1.2/1.6mm (.045/.060")
  • Work clamp with 3m cable and 35 series DINSE-style connector
  • Stick electrode holder with 3m cable and 35 series DINSE-style connector
  • NOVA Foot Pedal
  • Spool Adapter
  • Everlast Argon Regulator
  • Spare TIG consumable starter kit (does not include tungsten)
  • 3m Power Input cable with 6-50 NEMA Style Plug
Tech Specs
Type:
Digital/Micro-controlled IGBT Inverter
Output /Process Type:
MIG, DC TIG, DC Stick
Voltage/phase:
Dual Voltage 240v 1 PHASE
Max Rated MIG Amps:
  • 275A
Max Rated TIG Amps:
  • 250 Amps
Max Rated Stick Amps:
  • 220 Amps
MIG Amps/Volts @ Rated Duty Cycle:
  • 240V: 275A/27.8V @ 60% Duty Cycle/40º C
TIG Output Amps/Volts @ Rated Duty Cycle:
  • 240V: 250A/20V @ 60% Duty Cycle/40º C
Stick Amps/Volts @ Rated Duty Cycle:
  • 240V: 220A/28V @ 60% Duty Cycle/ 40º C
Max Inrush (I1MAX) Amps:
  • @240V: 48A
Maximum Rated (I1EFF ) Input Amps:
  • @240V: 38A
OCV:
  • MIG: 80V
  • TIG: 80V
  • Stick: 70V
MIG Output Range:
  • 240V: 30A-275A/15.5V-27.8V
DC Lift TIG Output Range:
  • 240V: 10-250A/10.4V-20V
Stick Output Range:
  • 240V: 10A-220A/20.4V-28V
Variable MIG Inductance/Stick Arc Force Control:
Yes
Spool Gun Capable:
Yes, Optional. (Not Included)
Pulse:
Single
Pulse Frequency:
MIG: Synergically Controlled, TIG: 0-500Hz
Pulse Time On:
MIG: Synergically Controlled, TIG: 5-95%
Pulse Volts:
Synergically Controlled, 10-90% of TIG Amps(Not Volts)
Standard Drive Roll wire size:
.035”-.045”
Separate wire feeder:
No, self contained
Number of Drive rollers:
4
Max Wire Feed Speed:
600 IPM
Max Wire Roll Diameter:
12” (up to 44lb)
Memory:
Yes
Upslope Time:
  • TIG: 0- 5 Seconds
  • MIG: 0-5 Seconds
Down Slope Time:
  • TIG: 0-5 Seconds
  • MIG: 0-5 Seconds
Preflow Time:
0-5 Seconds
Post Flow Time:
0-10 Seconds
Foot Pedal:
NOVA
Flux Core:
Yes, optional
Air Carbon Arc:
No
2T/4T /Torch latch/Trigger:
Yes
Other Features:
  • High Frequency Start and Lift TIG start in TIG Mode
  • Pulse TIG
  • Pulse MIG
  • Stick Arc force Control
  • Run-in
  • Wire Jog
  • Gas Purge
  • PowerSet Mode
  • Push-Pull Capability
Minimum Maximum MIG:
  • Weld up to a maximum of 7/16" Steel/Stainless single pass
  • Weld over 3/4" Steel/Stainless multi-pass
  • Weld a minimum of 24 gauge Steel/Stainless
For MIG welding Aluminum, use the supplied 3m MIG gun, U-groove drive rolls and a Teflon liner (best choice for shorter distances). For longer required distances, choose between the North Push-Pull Gun (Recommended for longer distances) or the Parker 300A (Recommended for small weld quantities/longer distances)
  • Weld up to a maximum of 3/8" in a single pass weld Aluminum
  • Weld over 3/4" in multiple pass welds Aluminum
  • Weld a minimum of 14 Gauge Aluminum
TIG:
  • Weld up to a maximum of 1/2" single pass
  • Weld up to a maximum of 3/4" multi-pass
  • Weld a minimum of .015" thick
STICK:
  • Weld with a maximum of 3/16" diameter electrode
  • Weld with a minimum of 1/16" diameter electrode
Maximum electrode thickness is ultimately dependent upon electrode type and electrode manufacturer
Optional Equipment
  • Spool gun with 25 ft. cable and Euro quick connect fitting (Not Included)
  • Flux Core drive rolls/extended drive roll sizes for MIG
  • Liners
  • Water Cooler
  • Welding cart
  • Consumable kits
Notes This machine is NOT AC Capable(will NOT weld Aluminum). DC ONLY. Minimum Generator Wattage needed for maximum output on 240V: 8500 W NOTE: Use only with a generator rated by its manufacturer as "clean power" if using with a generator.  Consult manufacturer of generator for certification. Everlast does not approve or endorse generator brands or models, however, if the damage to the welder occurring from use with a generator not labeled as producing clean power by its manufacturer is not warrantable.  Typically clean power is represented as less than 5% THD. ** Supplied AK36 MIG Gun installed with a Yellow STEEL Liner for wire/tip sizes 1.2/1.6mm (.045/.060") (subject to change) Appearance and type of accessories and consumables may vary from what is depicted.
