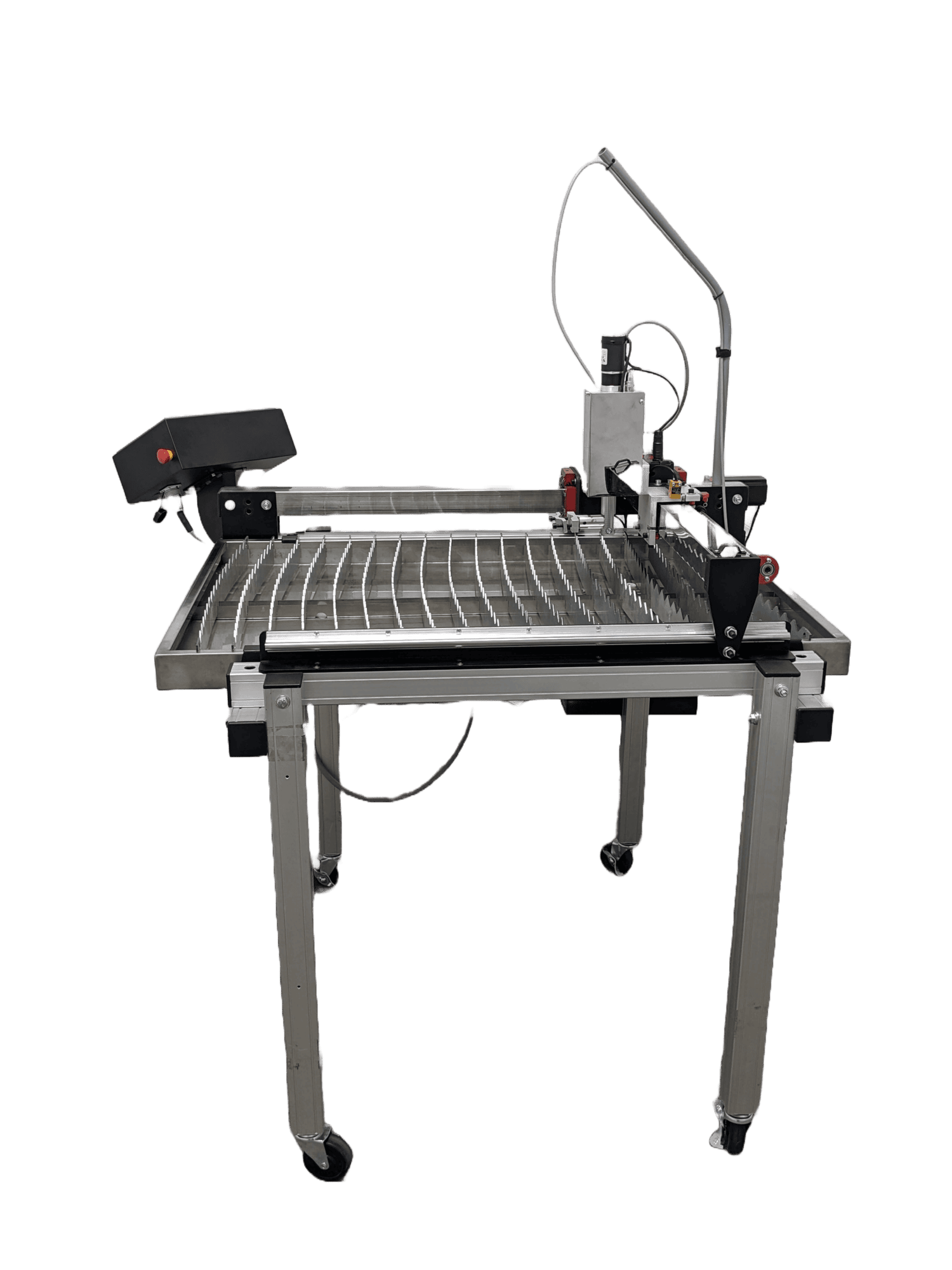

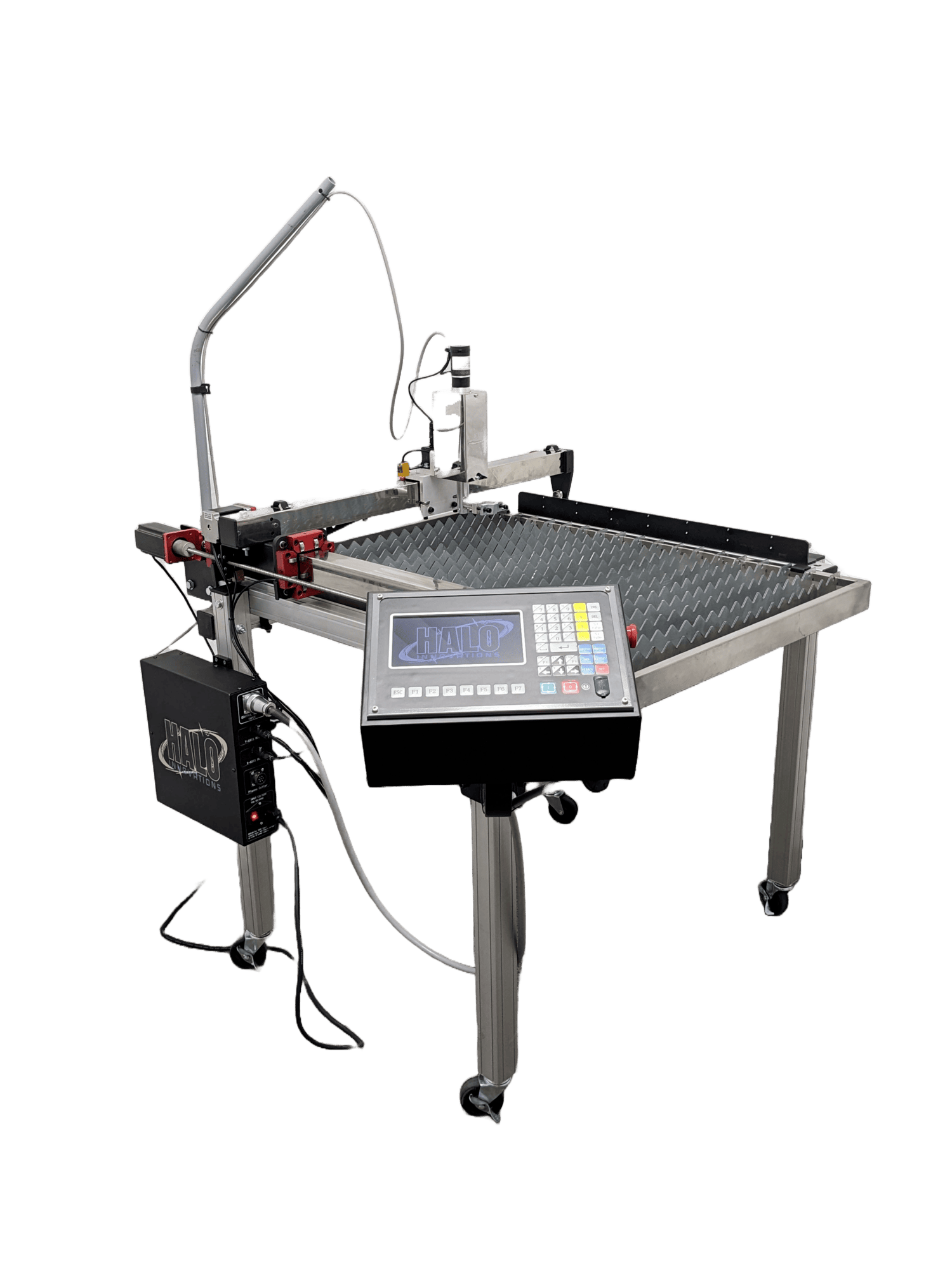

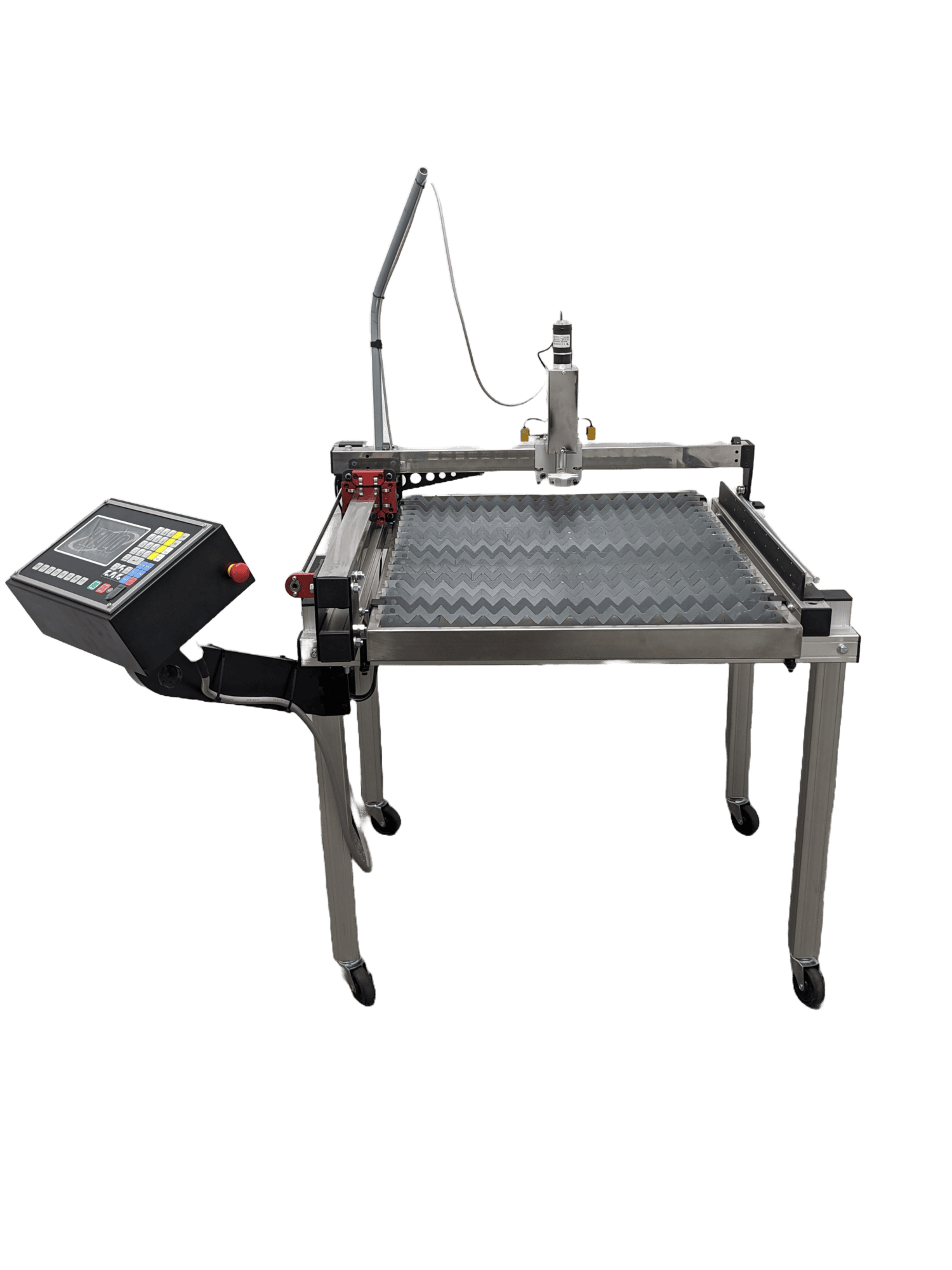

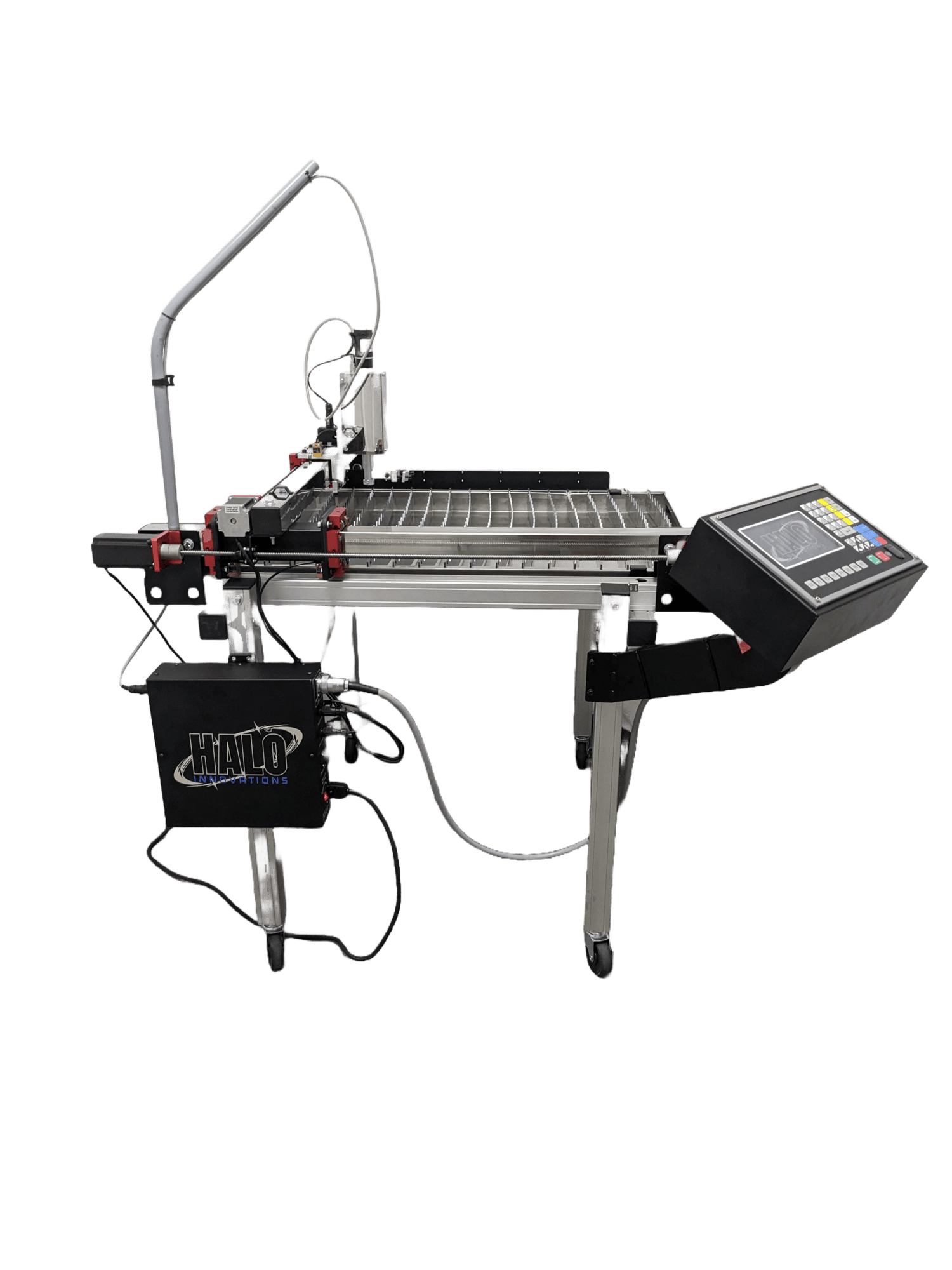

HC-2400 2′ x 2′ Plasma Table

$3,350.00

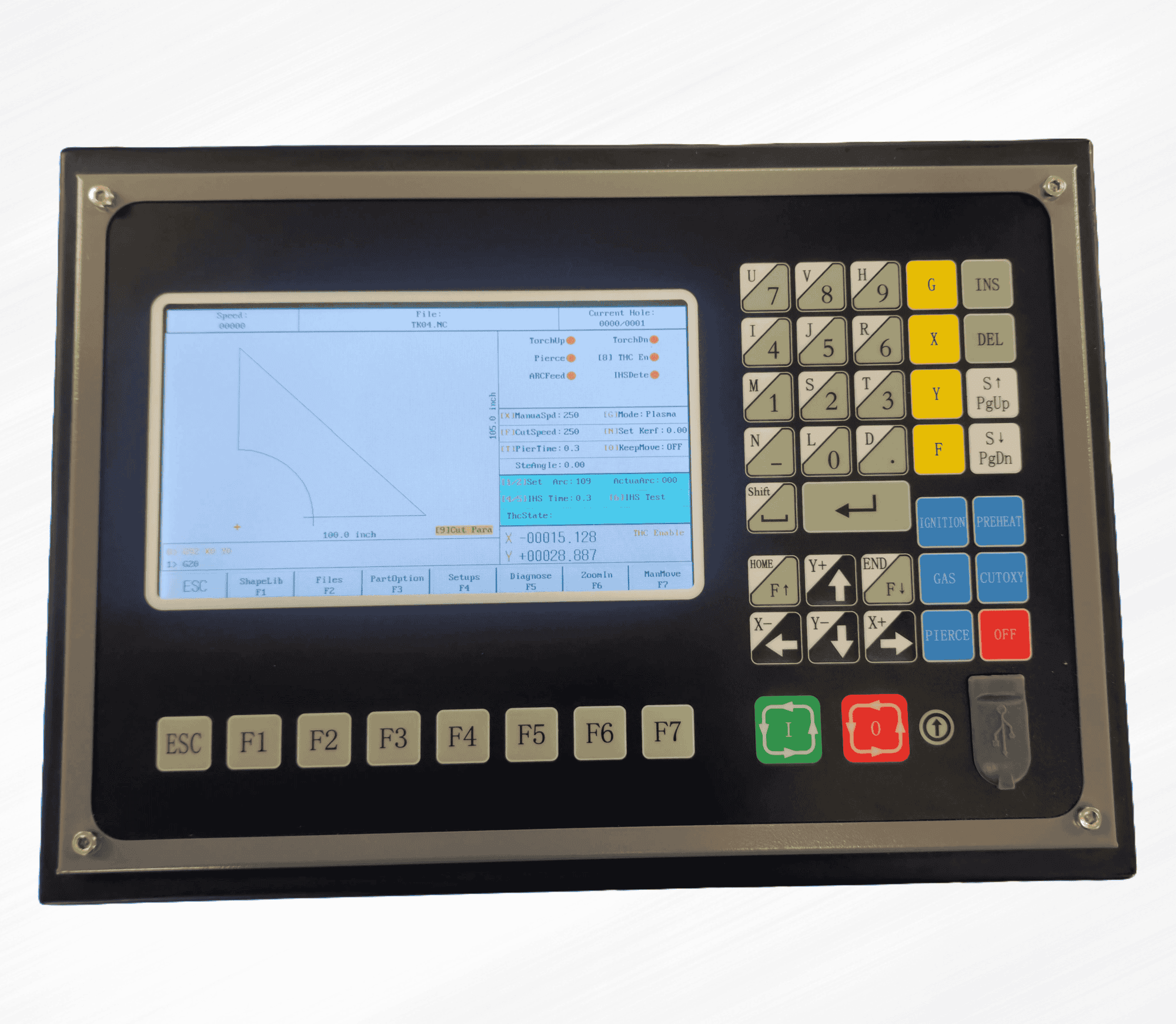

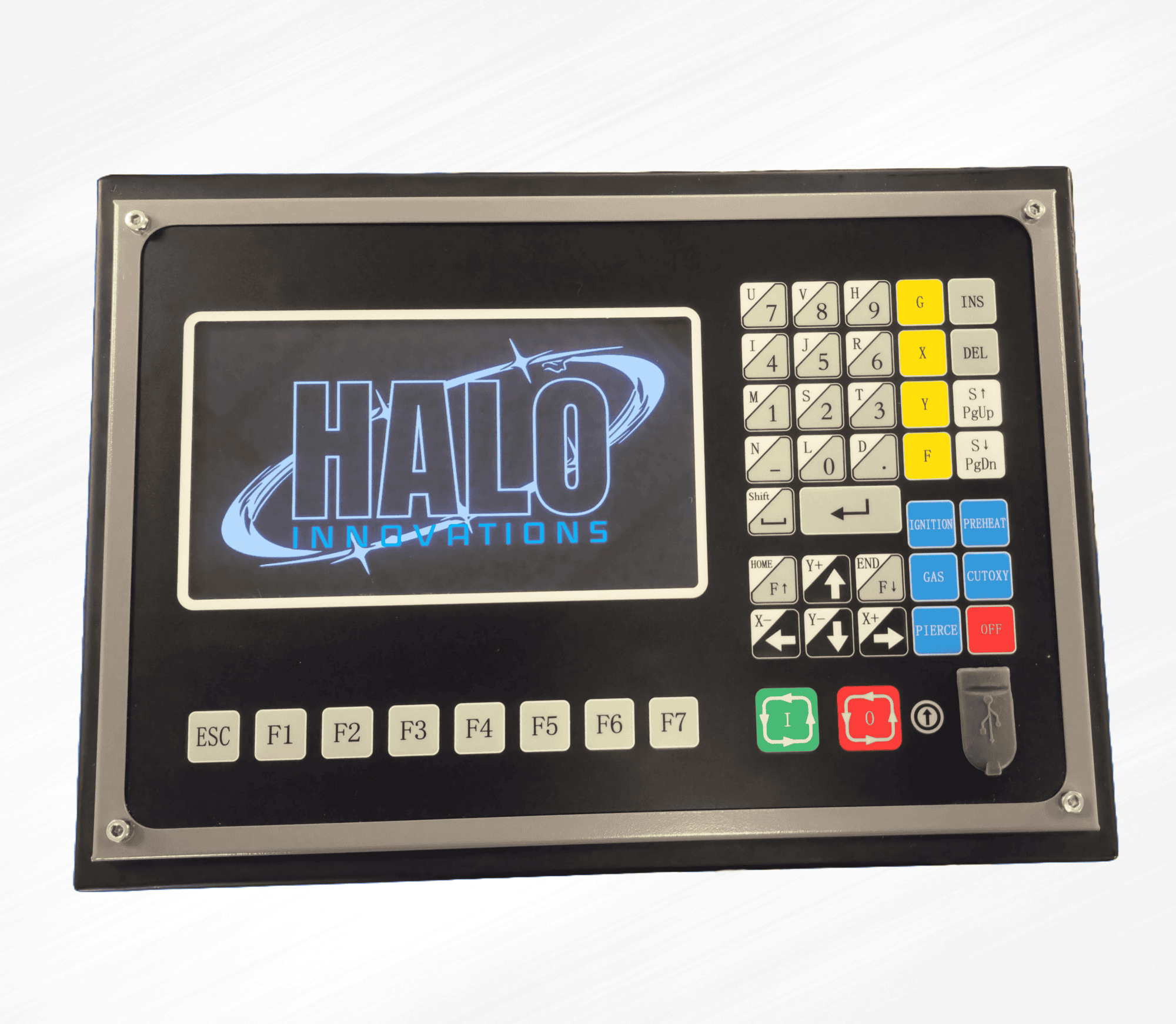

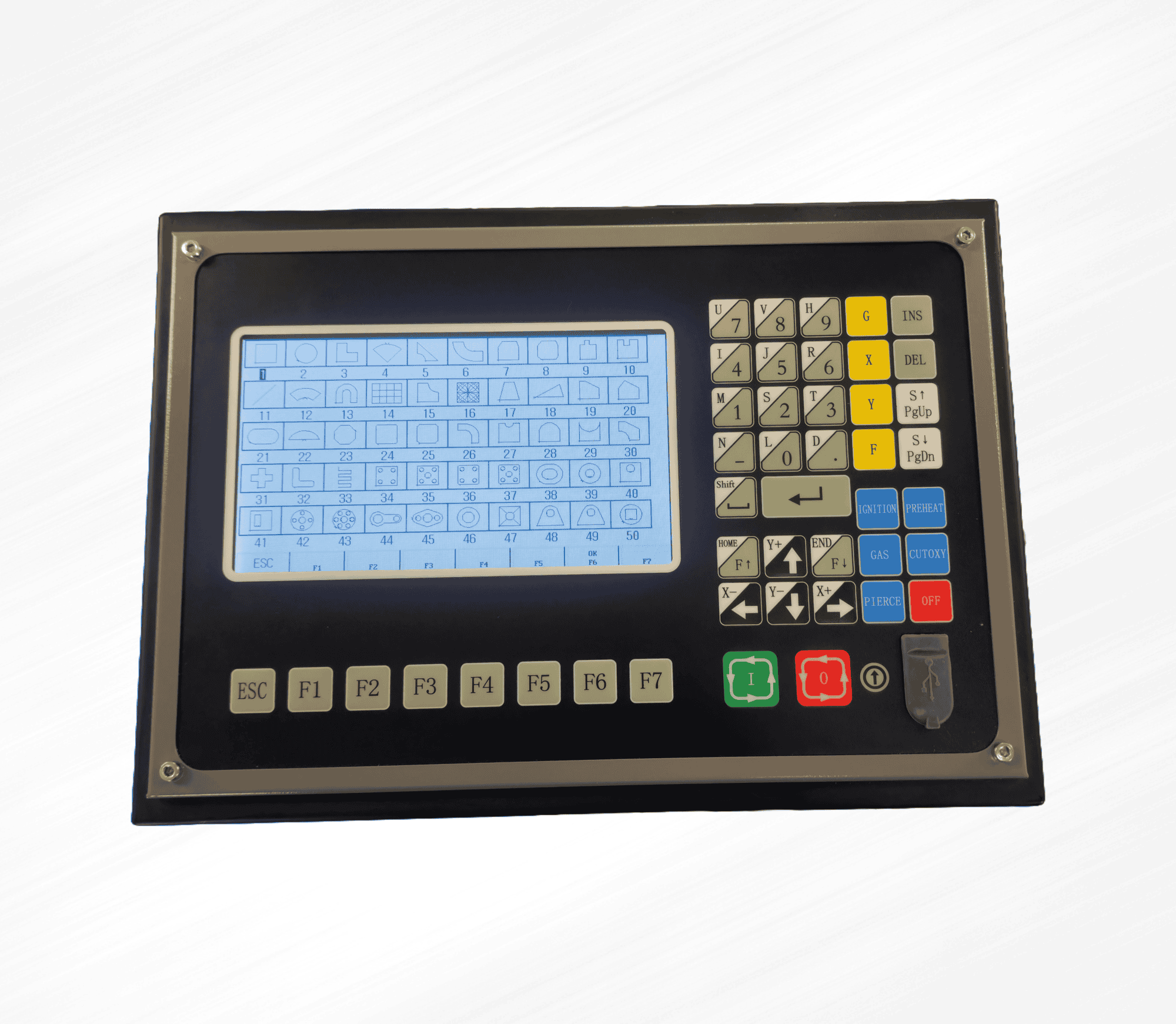

  • StarFire Operator station with colour LCD screen interface and USB drive for importing and updating files

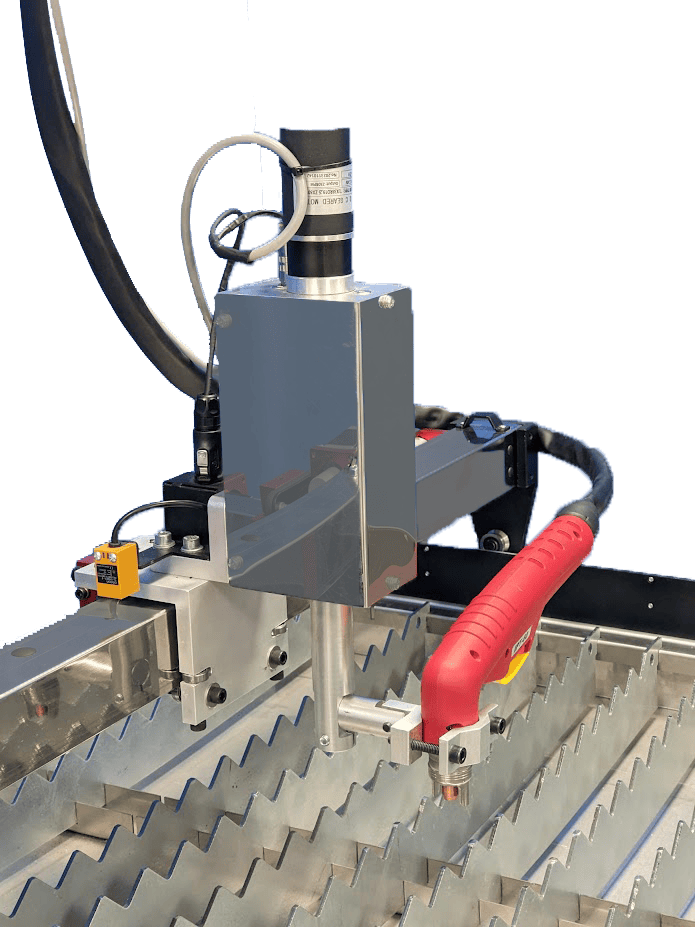

  • StarFire Torch Height Controller (THC) 50:1, 1:1
  • Z-Axis has a travel of 1.96”
  • X-Axis has a travel of 24"
  • Y-Axis has a travel of 24"
  • Omron Proximity Switches Installed on the X and Y Axes
  • Maximum cutting area of 24" x 24" {X-axis, Y-axis}
  • Can accept a maximum sheet size of 27.5" x 40"

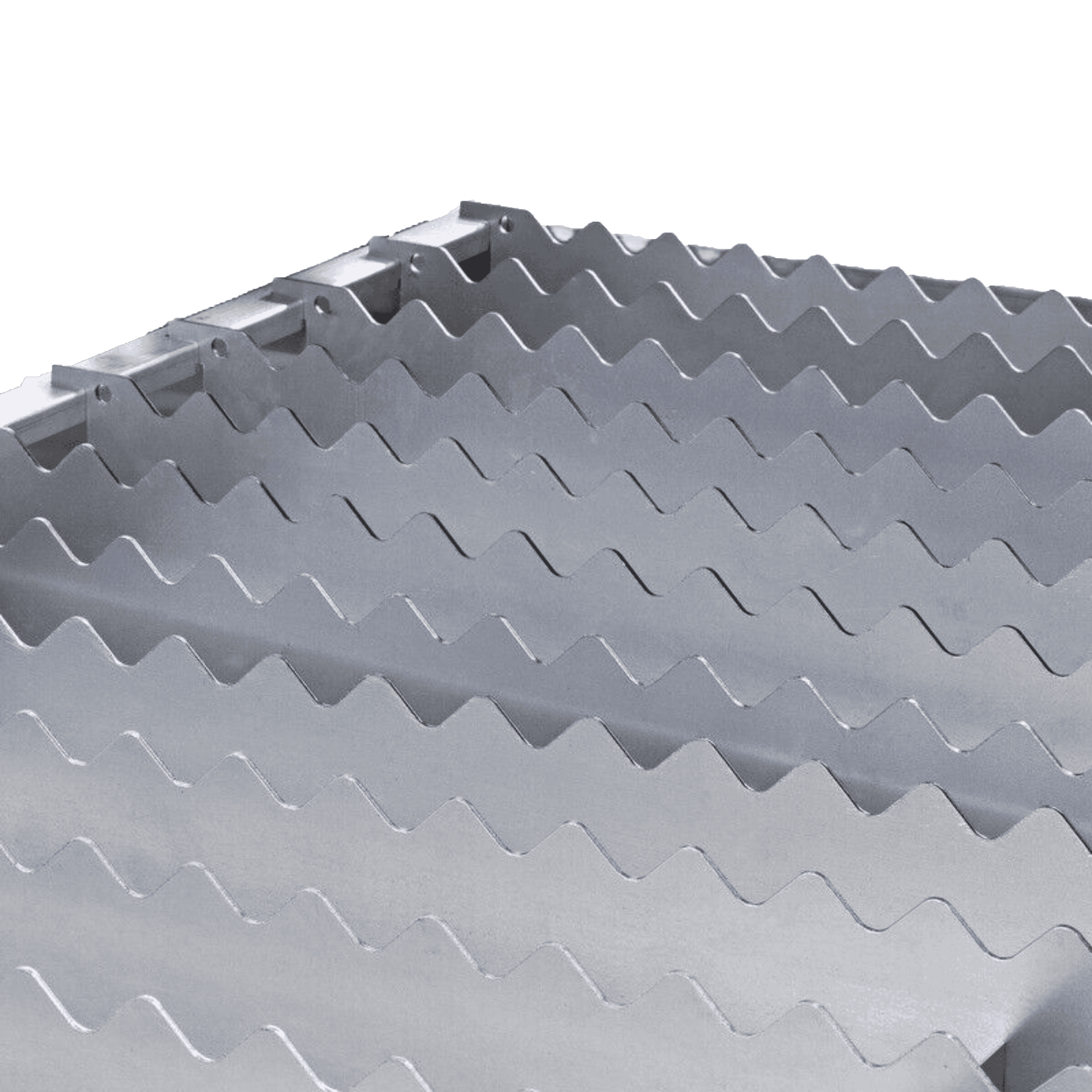

  • Steel removable waterbed that holds 8 gallons and accepts standard 2' x 2' pre-cut sheets
  • Max travel speed of 236-ipm
  • Robust stepper motors for long life and accurate cut movements ±0.2mm

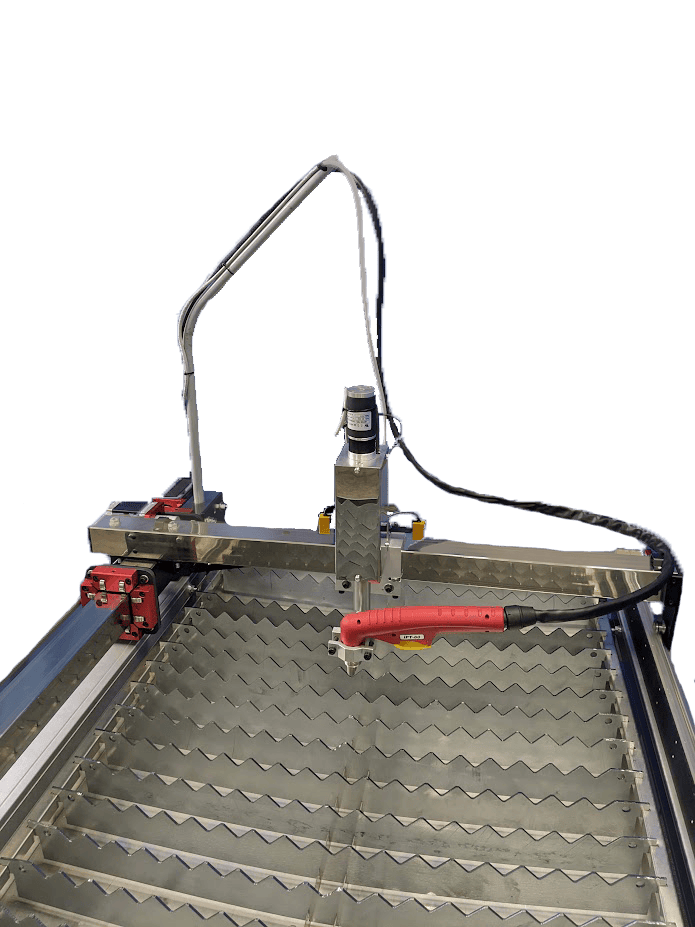

  • 2.5ft Cable Routing Pole for extra cable support while cutting

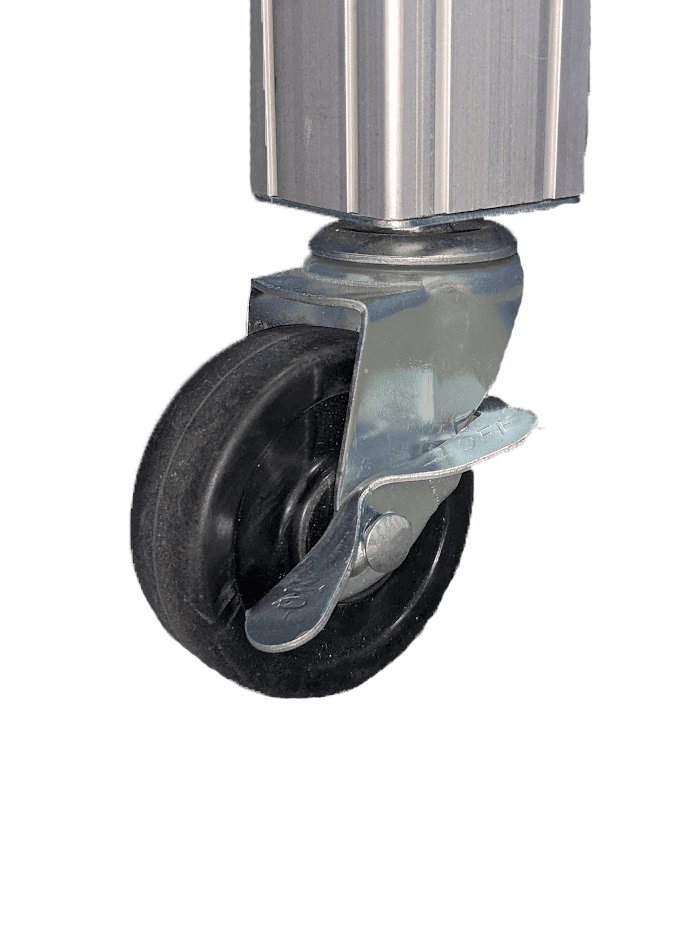

  • Includes locking casters for convenient movement and storage
  • CNC table will come wired to plug into 110VAC but can be switched to run on 220VAC
  •  Max weight limit on cut table 100lbs
  • All hardware and tools for assembly included
  • Plasma Cutter Not Included

In stock

HC-2400 2' x 2' Plasma Table $3,350.00

We are excited to announce our collaboration with Halo Innovations Inc. to enhance the experience of our CNC users utilizing Everlast Plasma Cutters. Discover the possibilities with Halo’s 2′ x 2′ Personal CNC Table.

This table comes equipped with vital accessories, including a Water Table, Z-Axis, and THC, ensuring optimal performance.

The intuitive FireStar operator control station empowers users to execute intricate cuts that adhere to exact specifications, achieving a level of accuracy that exceeds traditional techniques. The adaptability of CNC plasma cutting is showcased across numerous sectors, each leveraging its precision and efficiency for diverse applications.

CNC plasma cutting has revolutionized not only industrial manufacturing but has also paved the way for artists, automotive enthusiasts, and designers to explore new creative horizons. This robust tool facilitates innovation in creativity, prototyping, and production, significantly improving efficiency. With this advanced technology, you can realize complex artistic concepts with a degree of detail and precision that is unmatched by other tools.

Features & Benefits
  • StarFire Operator station with colour LCD screen interface and USB drive for importing and updating files
  • StarFire Torch Height Controller (THC) 50:1, 1:1
  • Z-Axis has a travel of 1.96”
  • X-Axis has a travel of 24"
  • Y-Axis has a travel of 24"
  • Omron Proximity Switches Installed on the X and Y Axes
  • Maximum cutting area of 24" x 24" {X-axis, Y-axis}
  • Can accept a maximum sheet size of 27.5" x 40"
  • Steel removable waterbed that holds 8 gallons
  • Max travel speed of 236-ipm
  • Robust stepper motors for long life and accurate cut movements ±0.2mm
  • 2.5ft Cable Routing Pole for extra cable support while cutting
  • Includes locking casters for convenient movement and storage
  • CNC table will come wired to plug into 110VAC but can be switched to run on 220VAC
  •  Max weight limit on cut table 200lbs
  • All hardware and tools for assembly included
Tech Specs
Power Requirements:
120VAC+10%, 5A, 50/60Hz
Plate Capacity:
27.5in x 40in x 0.25in.
Weight Capacity:
200lbs (90kg)
Torch Max Travel Speed:
236ipm (5994mmpm)
Torch Travel X-Axis:
24in. (610mm)
Torch Travel Y-Axis:
24in. (610mm)
Torch Travel Z-Axis:
1.96in. (50mm)
Assembled Waterbed Dimensions X-Axis:
27.75in. (705mm)
Assembled Waterbed Dimensions Y-Axis:
40.6in.(1018mm)
Assembled Waterbed Dimensions Z-Axis::
2.17in. (55mm)
Total Assembled Dimensions:
  • 52.5in x 55in x 60.5in
  • 1333mm x 1397mm x 1536mm
Assembled Weight:
158lbs (72kg)
Movement Accuracy:
+0.2mm
Cutting Accuracy:
+0.5mm
Minimum Maximum
  • Cutting capacity is dependent on the Plasma Cutter Amperage
  • Table capacity can handle a maximum sheet of 27.5in x 40in x 0.25in
Optional Equipment
  • Plasma Cutter
  • Hand Torch
  • CNC Machine Torch
  • Plasma Consumables
  • Laser Guide
